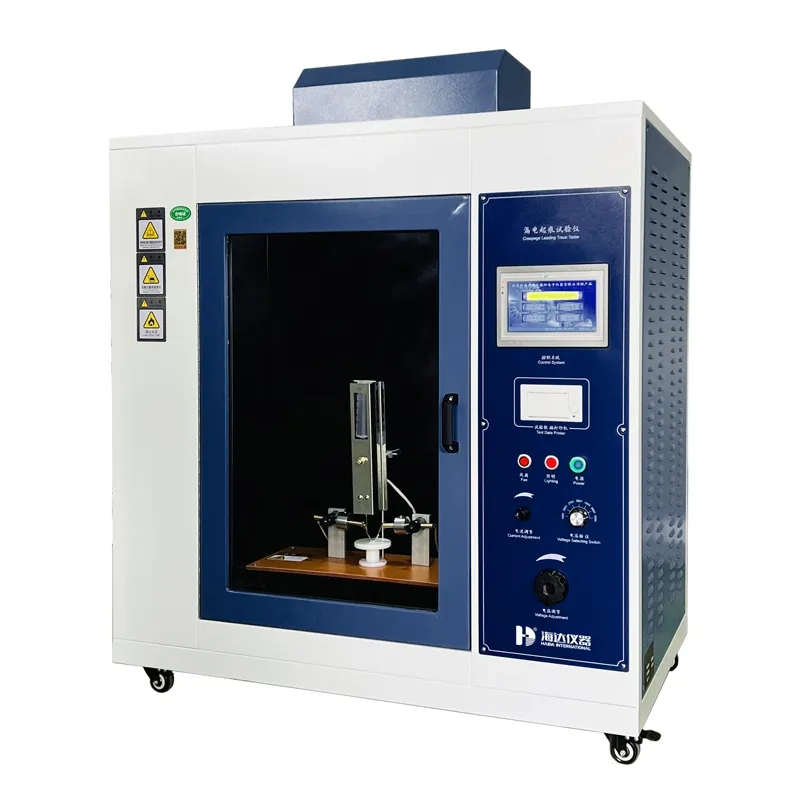

    Touch Screen Tracking Resistance Test Machine CTI / PTI Test

    Ask Lasest Price
    Brand Name : Haida
    Model Number : 6005-HD
    Certification : CE,,ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 300 Sets per Month
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

    Touch Screen Tracking Resistance Test Machine CTI / PTI Test

    Tracking Resistance Tester
    Product Description


    Under humid or contaminated conditions, electrical insulation between live parts of opposite polarity or between live parts and grounded metal components may degrade, leading to leakage currents. This can cause arcing, material erosion, short circuits, or even ignition. This tester simulates such conditions to evaluate the relative resistance of insulating materials to tracking under electric stress and contaminated water exposure. It applies to solid insulating materials and products in electrical/electronic equipment and household appliances, such as relay sockets, switch covers, and contactor housings.

    Test Standard


    IEC 60112:2020, GB/T 4207-2022, IEC 60335-1, GB 4706.1, IEC 60884-1, GB 2099.1, IEC 60950, GB 4943.1-2022

    Product Specifications
    Model6005-HD
    Control System7-inch color LCD touchscreen + PLC (Programmable Logic Controller), equipped with a test data printer.
    Display System7-inch color LCD touchscreen for setting/displaying test voltage, current, droplet count, droplet interval, print interface, and operational status.
    Chamber Volume≥0.5 m³, with a glass observation door.
    Electrical LoadAdjustable test voltage: 100-600V. Short-circuit current: 1A ±0.1A with ≤10% voltage drop. Overcurrent relay trips at 0.5A ±10% (2s tolerance ±10%), triggering an audible alarm for failed samples (reset via voltage stop).
    Electrode ForceRectangular platinum electrodes, each applying 1.0N ±0.05N to the sample.
    Droplet SystemDroplet height adjustable: 30-40mm. Mass of 50 droplets: 0.997-1.147g; 20 droplets: 0.380-0.480g. Droplet interval: 30±5 seconds (configurable).
    Key FeaturesStainless steel/brass construction with platinum electrodes (high-temperature/corrosion-resistant). Precise droplet counting and stable control system.
    Power SupplyAC 220V, 50Hz.
    Touch Screen Tracking Resistance Test Machine (CTI/PTI Test)

    About us
    Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
    Touch Screen Tracking Resistance Test Machine CTI / PTI TestTouch Screen Tracking Resistance Test Machine CTI / PTI TestTouch Screen Tracking Resistance Test Machine CTI / PTI Test


    Why choose us?
    1.Design & Production : Solution Consultation for each order
    Recommend the most cost -performance machine
    Research & Develop the suitable one for Special- designed Model.
    2.Shipping & Delivery: One-Stop Service
    Production- Deliver to your door - Installation & Training- Technical Support
    3.Warranty
    1 year warranty with lifetime technology support
    4.After-Sale Service
    React within 2 Hours
    Video inspection & on-site service combined


    FAQ

    Q: How about your warranty?

    A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.


    Q: What is the order process?

    A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.


    Q: Can we visit your factory before order?

    A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.


    Q: Do you accept customization service?

    A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
