    Lab Testing Equipment Fire Hazard Evaluation / Hot Wire Ignition Test Machine Ni80/Cr20 IEC60695-2-20

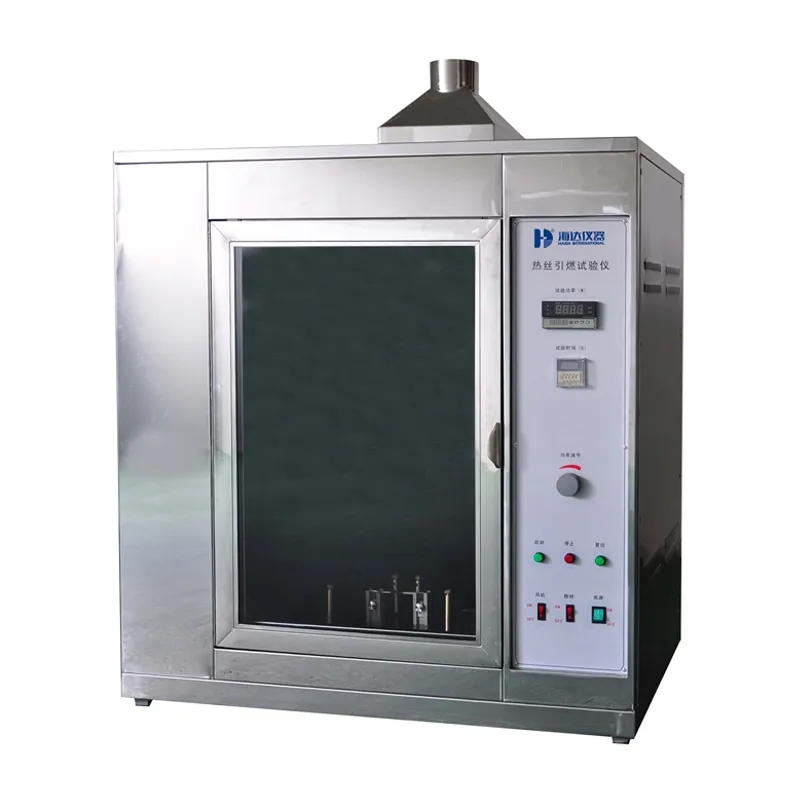

    Hot-Wire Ignition Tester
    Product Description


    This tester simulates fire hazards as specified in IEC 60695-2-20, UL 60950, IEC 60950-1999, and ASTM D3874-1997. It employs a heating wire of specific dimensions (0.5mm × 250mm) and material (Ni80/Cr20), pre-annealed at a defined power (0.26W/mm) and duration (8-12 seconds). The wire is wound in five full turns around the sample at a 6mm pitch, then tested at the same power (0.26W/mm) until ignition or for up to 120 seconds. The test evaluates fire risks based on ignition occurrence or time to ignition.


    Test Standard

    GB/T 4943-2022, IEC 60950:1999, IEC 60695-2-20:2021, UL 60950, ASTM D3874-1997
    Product Specifications
    Model6004-HD
    Chamber Volume≥0.5 m³, with a glass observation door.
    Heating Wire SpecificationDiameter: Ø0.5mm, length: 250mm±5mm, material: nickel-chromium alloy (80% Ni, 20% Cr, iron-free), cold resistance: ~5.28 Ω/m
    Annealing Stand Spacing250mm
    Sample Stand Spacing70mm
    Sample Stand Height60mm
    Annealing Time8-12 seconds (adjustable range: 1-999.9 seconds, digital display)
    Annealing Power0.26W/mm ±4%, digitally adjustable and displayed
    Test Duration120 seconds (adjustable range: 1-999.9 seconds, digital display)
    Test Power0.26W/mm ±4%, digitally adjustable and displayed
    Sample Dimensions130mm (length) × 13mm (width)
    Key FeaturesBlack interior background, integrated ventilation and lighting, digital display for time and power, ensuring easy observation, recording, and reliable operation.
    Power SupplyAC 220V, 50Hz.
    Lab Testing Equipment Fire Hazard Evaluation/Hot Wire Ignition Test Machine (Ni80/Cr20, IEC60695-2-20)
