    High Voltage Tracking Resistance Test Machine GB/T 6553-2003

    Ask Lasest Price
    Brand Name : Haida
    Model Number : 6008-HD
    Certification : CE,,ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 300 Sets per Month
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

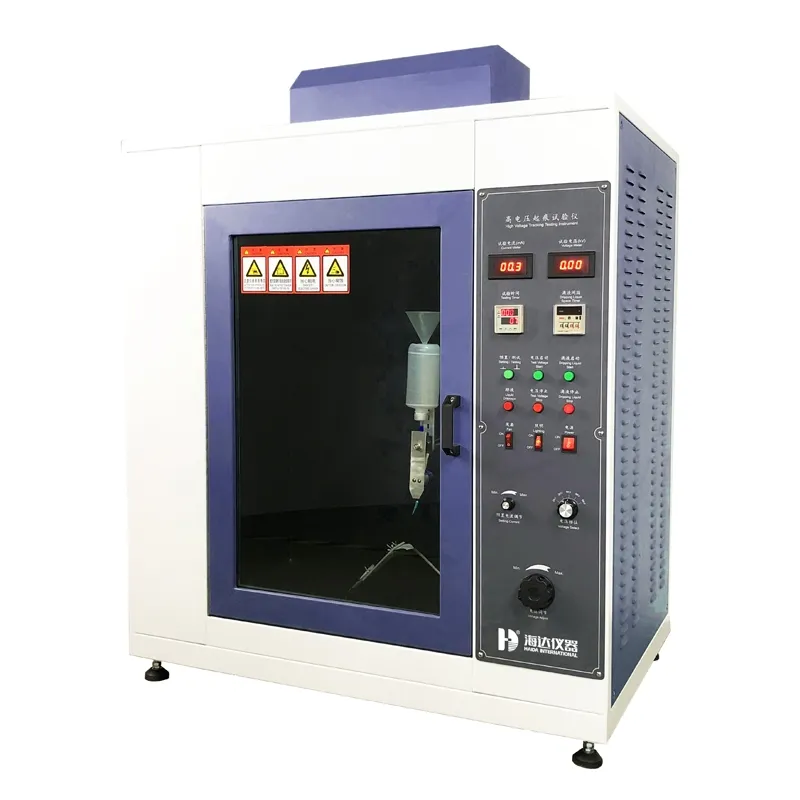

    High Voltage Tracking Resistance Test Machine GB/T 6553-2003

    High Voltage Tracking Resistance Tester GB/T 6553-2003
    Product Description


    The High Voltage Tracking Resistance Tester is designed to evaluate the tracking and erosion resistance of electrical/electronic products, household appliances, and their materials. High Voltage Tracking Resistance Tester simulates harsh environmental conditions by applying liquid contaminants and inclined samples under power frequency (48Hz-62Hz) to assess the performance of electrical insulation materials.

    Test Standard

    The equipment is manufactured in accordance with GB/T 6553-2003 and IEC 60581:1984 standards.
    Product Specifications
    Model6008-HD
    Chamber Volume≥0.5 m³, with a glass observation door.
    Electrical LoadAdjustable voltage range: 0-6000V ±5%. Overcurrent protection trips at ≥60mA for 2 seconds, triggering an audible alarm (reset via voltage stop).
    Droplet IntervalAdjustable: 0-99.99 seconds.
    Filter PaperStandard dimensions; thickness: 0.15-0.17mm.
    ElectrodesThickness: 0.5mm; spacing between upper and lower electrodes: 50±0.5mm (standard-compliant dimensions).
    Droplet SystemAdjustable height; contaminant flow rate: 0.075-0.9 mL/min; pre-settable test duration.
    Key FeaturesStainless steel construction for all components (electrodes, fasteners, screws, washers, nuts).
    Power SupplyAC 220V, 50Hz.

    High Voltage Tracking Resistance Test Machine GB/T 6553-2003

    About us
    Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
    High Voltage Tracking Resistance Test Machine GB/T 6553-2003High Voltage Tracking Resistance Test Machine GB/T 6553-2003High Voltage Tracking Resistance Test Machine GB/T 6553-2003


    Why choose us?
    1.Design & Production : Solution Consultation for each order
    Recommend the most cost -performance machine
    Research & Develop the suitable one for Special- designed Model.
    2.Shipping & Delivery: One-Stop Service
    Production- Deliver to your door - Installation & Training- Technical Support
    3.Warranty
    1 year warranty with lifetime technology support
    4.After-Sale Service
    React within 2 Hours
    Video inspection & on-site service combined
