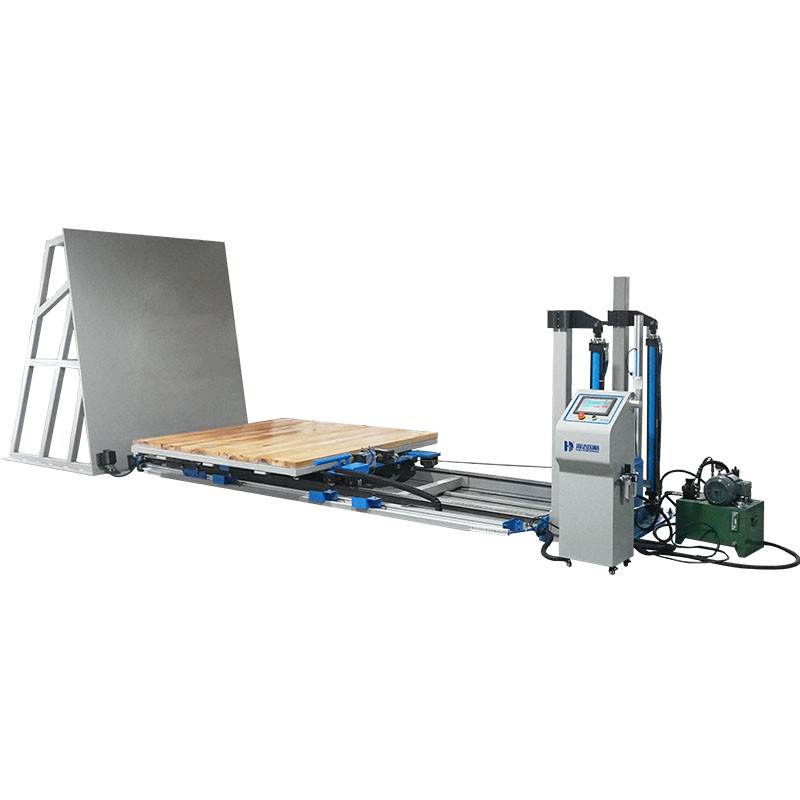

    ISTA Packaging Testing Equipment For Inclined Impact With Strong Impact Resistance

    Ask Lasest Price
    Brand Name : Haida
    Model Number : HD-A523
    Certification : CE,,ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 300 Sets per Month
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

    ISTA Packaging Testing Equipment For Inclined Impact With Strong Impact Resistance

    Package Incline Testing ISTA Packag Transport Inclined Impact Testing Equipment


    ISTA Series Testing Machine.pdf

    Haida ISTA Series Testing Machine.pdf


    GENERL SPECIFICATIONS

    Packaging Dimensions: 25CBM

    Power supply source: three-phase, 220V±10%, 50/60Hz

    Gross Weight: approx. 2800kg


    STANDARD SPECIFICATIONS

    ItemDescription
    Load capacity600kg(can be customized)
    Impact surface dimension1600 x 2200mm(can be customized)
    Rolling carriage table dimension1600x1600mm(can be customized)
    Control systemTouch screen controller
    Max. slide length2900mm(can be customized)
    Plane inclined to the vertical angleHorizontal
    Velocity range1.1~2.3m/s(can be customized)
    Impact surface materialRubber wood with two-rail steel track
    Working conditionTemperature 0~40°, humidity ≤80% (no condensation)
    Floor area7220*1800mm(can be customized)
    Safety features

    E-Stop

    Over-load protection

    Upper and lower limit switches

    Load sensor with automatic retreat


    DESIGN STANDARDS

    ISTA 3E, 3J & ISTA 6 (inclined impact test)

    ISTA Packaging Testing Equipment For Inclined Impact With Strong Impact Resistance


    FEATURES:

    1. Flexible positioning and electric trolley. It is easy to fix and achieve the changeable value of speed.

    2. The height of trolley is relatively low so that is easy to fix the specimen; the strong impact resistance board can guarantee the fastness of the structure.

    3. The trolley can be adjusted to be horizontal in order to fix the specimen for customer. The angle adjustment is driven by air cylinder which is flexible and convenient.

    4. In order to keep the test staff completely safe, the tester is with remote control function.

    5. Before testing, the customer only needs to fix the tester on the ground when stalling it, no other complicated operation.
