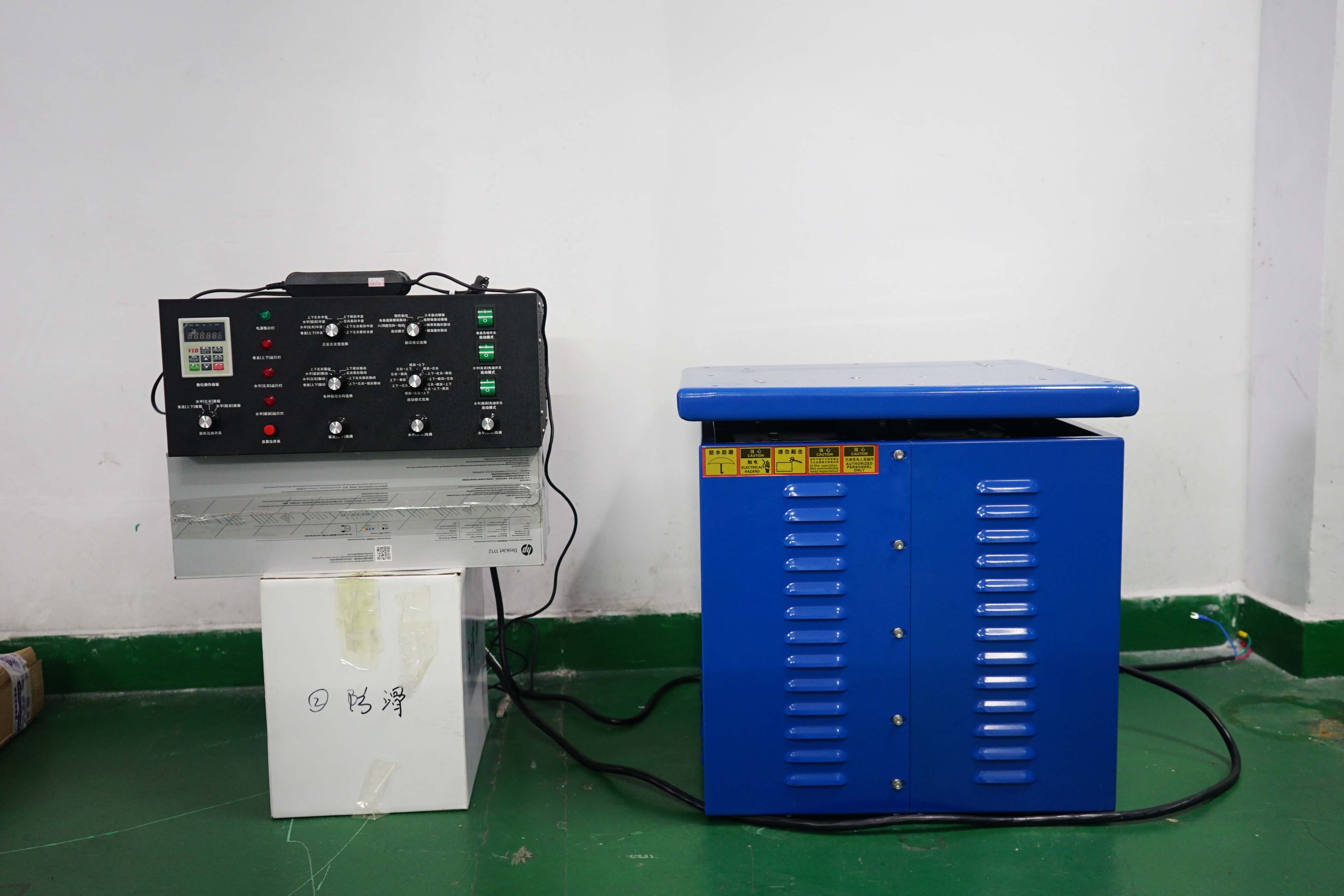

Characteristics:
Ultra mute work; The machine base uses the high quality material,
installs conveniently, the operation is smooth, does not need to
install the The, the control circuit digitization control and the
display frequency, the PID adjusts the function, causes the
equipment work to be more stable, reliable, sweeps the frequency
and the fixed frequency operation way, adapts to the different
profession test request To solve the interference of the strong
electromagnetic field to the control circuit, and to increase the
working time set, so that the test product reaches the accurate
test time.
How to use:
1, the control manual to complete the procedure
2, such as Operation error so that can not work, you can use the
recovery method of the steps of the input, and then set a single
group or other running steps.
3, before use to press the external start switch, appears COO
namely lets go, opens the key.
4, Taiwan Body:
1 The table body foot sleeve as far as possible fixed
2 power supply on/work in the output line can not be unplugged
3 Place the level as far as possible
4 components can be changed, the line should not be changed or from
the connection.
5 The Taiwan body must not be all or part of the reorganization,
only according to specifications for a single component and with
the original confirmation password.
5, the amplitude inside the code
1. Do not adjust too large before or after the boot
2) low-key amplitude of high amplitude modulation
3 Control Panel Amplitude Knob placed in the middle position test
items: placed to focus on the main point, reduce the left flat
right.
4 control Box: Can not be placed on the top or underground
operation
6, Inside Code:
1) reset when running or operating incorrectly
2) Control The Reset method step, each inside code only set one
time to save can
3 usually must use the internal code can not be set randomly
7, Control Box:
1) The connecting line of the body must be locked tightly after
hanging
2 the vibration direction switch and the output connection line are
correspondence, can not connect the wrong
8, testing: Non-special test should use full wave test
9, the Taiwan body: can not produce the collision sound, the upper
and lower center axis mutual touch will cause the spring steel
piece rupture to be immediately shut down, amplitude modulation is
adjusted small then turns on.
10, other unknown:
Do not arbitrarily change internal components and lines
11, the reason is bad:
1 The use of computer models can not be used for shaking table
control
2 can not reload the driver
2, for the Ista-ia test, the operator to protect the sample, to
prevent the test pieces slide out of the table;
3, gear gearbox replacement regularly;
4. Cut off all power when not working, keep clean; 5, non-staff can
not operate at will
